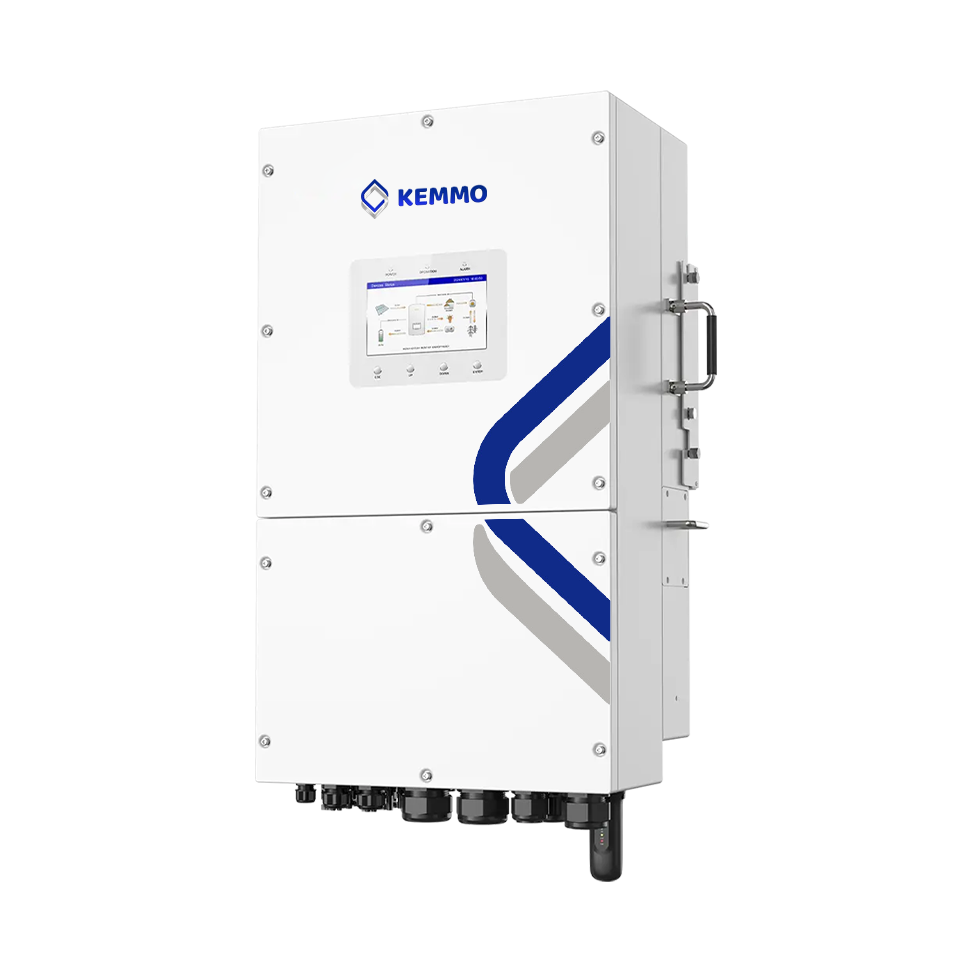

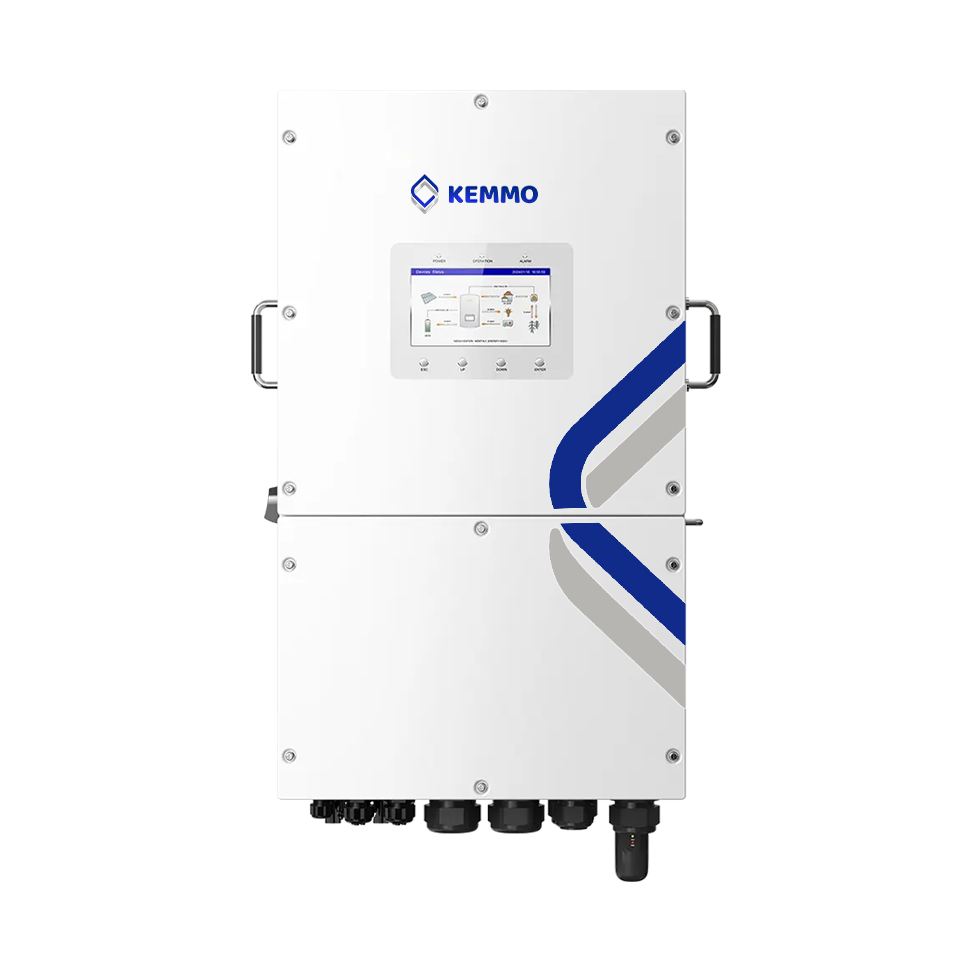

K6-EH1P(9.9-18)K03-NV-YD-L
9.9K/12K/14K/16K/18K
K6-EH1P(9.9-18)K03-NV-YD-L series energy storage inverter is suitable for large residential PV energy storage system, support up to 40A MPPT current input, suitable for 182mm/210mm solar panels; integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system, the maximum power of 160kW. also support AC couple to retrofit existing solar system; Maximum 350A charging and discharging current, providing higher energy density. Intelligent and reliable, make it the first choice for large-scale residential PV energy storage system.
Single Phase Low Voltage Energy Storage Inverter
Leading Features
Smart Energy Management
- Built-in control for SG-ready heat pumps
- Seamless integration with VPP and EMS platforms for enhanced energy optimization
- AI intelligently manages charging and discharging based on TOU (Time-of-Use) tariffs
High Performance
- Switching time < 10ms
- 160% PV input capacity to maximize solar energy utilization
Flexible & Scalable
- Compatible with mainstream lithium and lead-acid batteries
- Easily expand system capacity using parallel connections and AC coupling
Simple & Fast Configuration
- 7-inch LCD screen for an intuitive user experience
- Bluetooth app support for quick and easy setup
